Monel Flange

what is monel flange?

Monel is a trademarked name for a group of nickel-copper alloys that are highly resistant to corrosion and high temperatures. Monel flanges are therefore flanges made from this alloy, typically used in demanding industrial applications where resistance to corrosion and high temperatures are required.

Monel flanges are often used in the oil and gas industry, chemical processing plants, marine engineering, and other industries where harsh environments are common. They are known for their strength, durability, and excellent resistance to corrosion, making them ideal for use in pipelines, pressure vessels, and other equipment that is exposed to corrosive environments.

Specification of Monel flanges

The specification of Monel flanges is determined based on various factors, such as their size, pressure rating, material grade, and type of connection. Here are some of the commonly used specifications for Monel flanges:

1. Size: Monel flanges are available in various sizes ranging from 1/2" to 48" diameter.

2. Pressure rating: Monel flanges are available in different pressure ratings, ranging from 150 to 2500 lbs.

3. Material grade: Monel flanges are typically made from Monel 400, which is a nickel-copper alloy that contains approximately 67% nickel and 30% copper. Other Monel alloys, such as Monel K-500, may also be used depending on the specific application requirements.

4. Type of connection: Monel flanges can be manufactured in several types of connections, such as weld neck, slip-on, threaded, socket weld, lap joint, and blind flanges.

5. Standards: Monel flanges are manufactured in compliance with various international standards, including ANSI, ASME, DIN, EN, BS, and JIS.

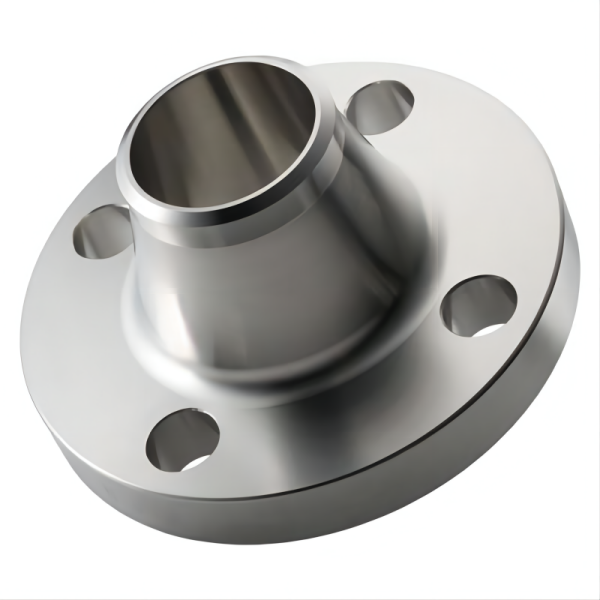

Welding Neck Monel Flange

A butt weld, also known as V-weld or groove weld, provides single full weld penetration and is used to connect the welding neck flange to a pipe or fitting. The single full weld penetration makes this type of flange suitable for severe operating conditions, such as high-pressure systems, sub-zero temperatures, and elevated temperatures. Other welding neck flange benefits include:

• Excellent stress-distribution along the tapered hub.

• Unrestricted flow with a low pressure drop across the valve (low delta P).

• High cyclical loading capability.

• Causes minimal turbulence.

• Low erosion rates.

• Means for a direct connection to elbows, tees, or reducers.

• On larger diameter flanges, there is more available space to perform non-destructive testing on the weld (difficult on some flange designs due to the location of the weld).

• High resistance to bending moments due to the long hub.

Magnetic particle inspection (MPI), dye penetrant inspection (DPI), radiographic testing (RT) and/or ultrasonic testing (UT) can be used to prove the butt weld.

ASME Standards

The standards ASME B16.5 and ASME B31.3 specify the requirements for welding neck flange installation, maintenance, and testing.

Composition of Monel Flanges

Monel is a group of nickel alloys, primarily composed of copper and nickel, with small amounts of iron, manganese, carbon, and silicon. Monel alloys are known for their resistance to corrosion, acid, and alkaline environments, making them ideal for use in harsh environments.

The composition of Monel flanges varies depending on the specific alloy, but typically includes:

• Copper (up to 70%)

• Nickel (up to 30%)

• Iron (up to 3%)

• Manganese (up to 2%)

• Carbon (up to 0.5%)

• Silicon (up to 0.5%)

Other trace elements may also be present, depending on the specific Monel alloy and the manufacturing process used. Monel 400, for example, is a common alloy that typically contains around 67% nickel, 23% copper, and smaller amounts of iron, manganese, and silicon.

Application of Monel Flanges

Monel flanges are widely used in various industries due to their exceptional corrosion resistance and high strength. Some common applications of Monel flanges include:

1. Oil and Gas Industry: Monel flanges are commonly used in offshore and onshore oil and gas production, refining, and processing facilities. They are used in pipelines, valves, and other critical equipment to handle corrosive fluids and gases.

2. Chemical Industry: Monel flanges are used in the chemical industry for their excellent resistance to a wide range of chemicals, including acids, alkalies, and organic solvents. They are used in chemical reactors, heat exchangers, and other equipment.

3. Marine Industry: Monel flanges are used in the marine industry for their excellent resistance to saltwater corrosion. They are used in seawater piping, heat exchangers, and other marine equipment.

4. Aerospace Industry: Monel flanges are used in the aerospace industry for their high strength and resistance to corrosion and erosion. They are used in aircraft engines, exhaust systems, and other critical components.

5. Power Generation Industry: Monel flanges are used in the power generation industry for their resistance to high-temperature steam and corrosive environments. They are used in steam turbines, boilers, and other power generation equipment.

If you have any demand for monel flange products, please contact us
