ASTM A516 Standard Specification for Pressure Vessel Plates, Carbon Steel, for Moderate- and Lower-Temperature Service

ASTM A516 Standard Specification for Pressure Vessel Plates, Carbon Steel, for Moderate- and Lower-Temperature Service

1.1 This specifification2 covers carbon steel plates intended primarily for service in welded pressure vessels where improved notch toughness is important.

1.2 Plates under this specifification are available in four grades having different strength levels as follows:

Grade U.S. [SI] Tensile Strength, ksi [MPa]

55 [380] 55–75 [380–515]

60 [415] 60–80 [415–550]

65 [450] 65–85 [450–585]

70 [485] 70–90 [485–620]

1.3 The maximum thickness of plates is limited only by the capacity of the composition to meet the specifified mechanical property requirements; however, current practice normally limits the maximum thickness of plates furnished under this specifification as follows:

Grade U.S. [SI] Maximum Thickness, in. [mm]

55 [380] 12 [305]

60 [415] 8 [205]

65 [450] 8 [205]

70 [485] 8 [205]

1.4 For plates produced from coil and furnished without heat treatment or with stress relieving only, the additional requirements, including additional testing requirements and the reporting of additional test results of Specifification A 20/A 20M apply.

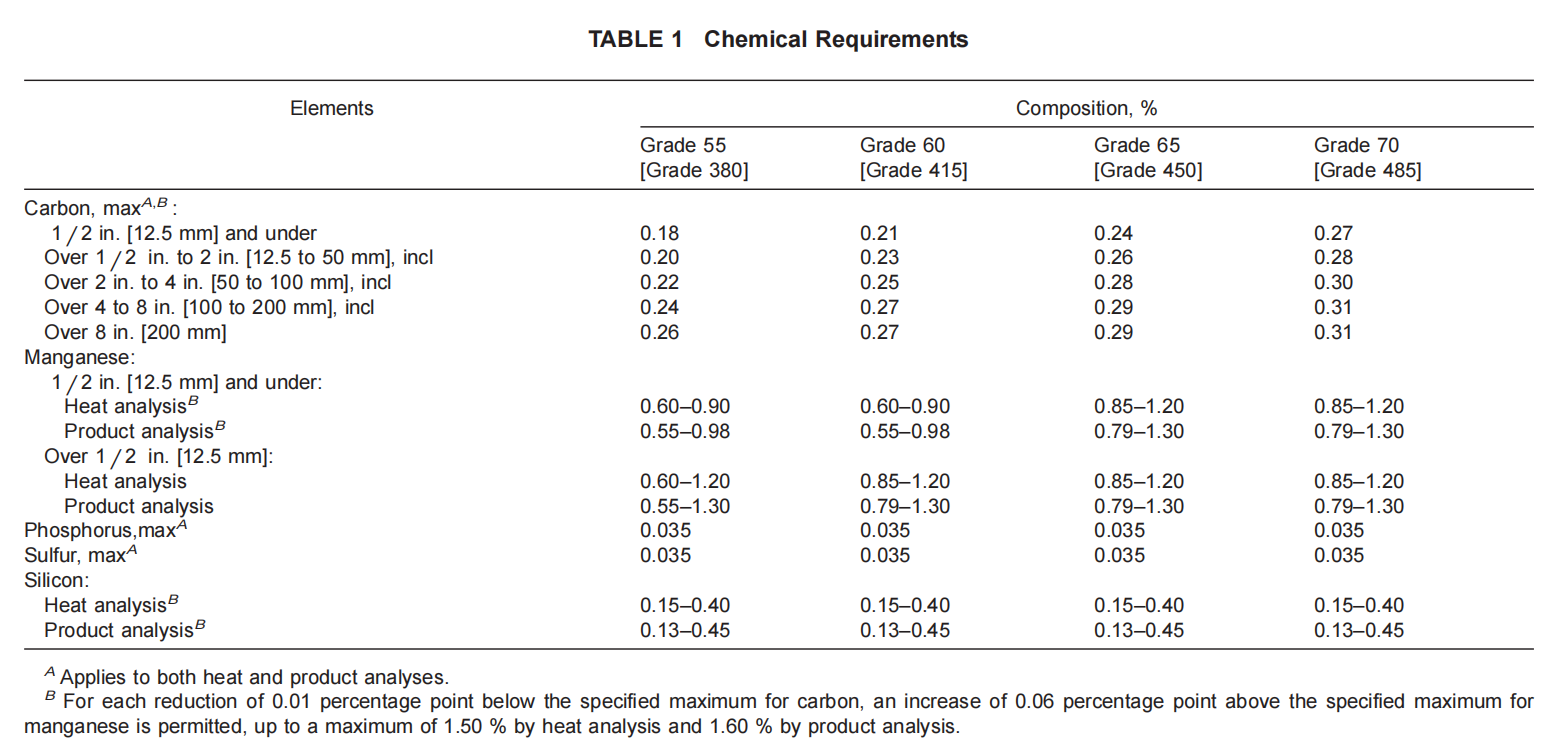

1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specifification.
